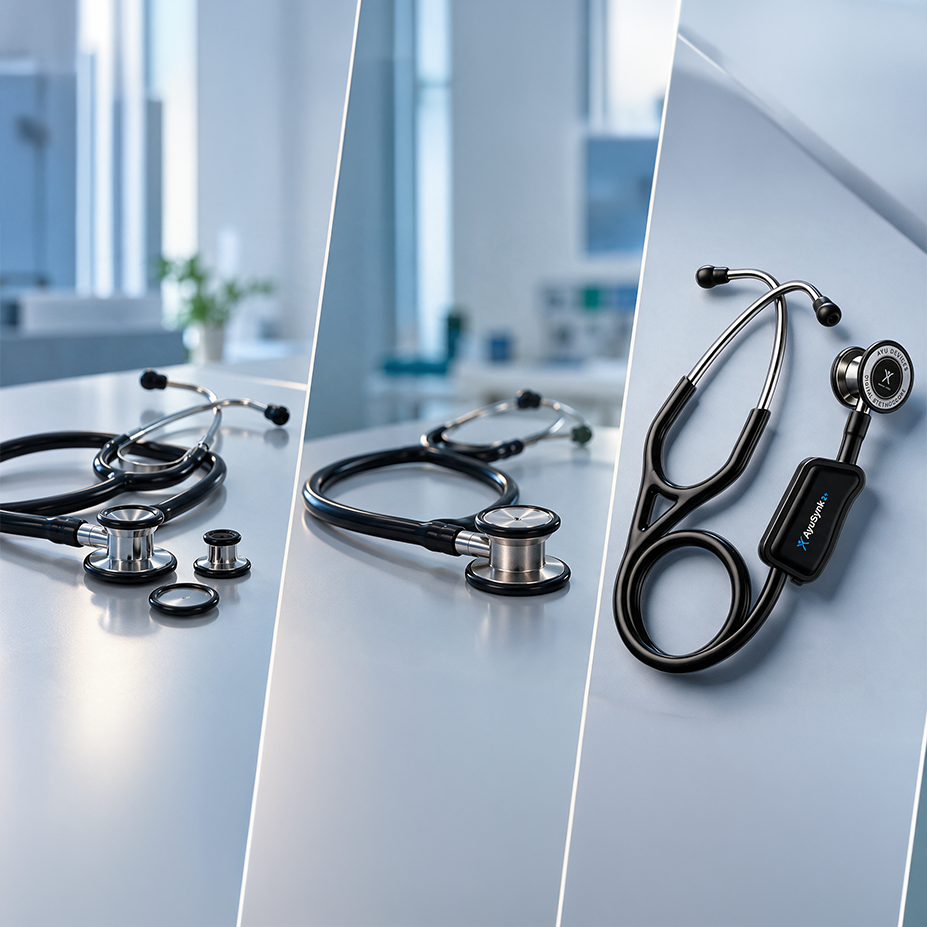

Convertible Stethoscope vs Dual Head Stethoscope vs Digital Stethoscope
Quick answer: A dual head stethoscope describes a two-sided chestpiece. A convertible stethoscope describes a chestpiece that can be reconfigured between supported configurations. A digital stethoscope describes electronic amplification and filtering. These categories can overlap, so they should not be treated as three mutually exclusive device types.
For clinicians, the practical comparison is how each design handles chestpiece fit, frequency emphasis and review.
Dual-Head and Convertible Stethoscopes Are Not the Same Thing
A dual-head stethoscope has two physical chestpiece sides, which may use a bell and diaphragm or tunable diaphragms depending on the model.
Convertible describes reconfiguration rather than the number of sides. A useful example is the Littmann Classic III, which uses adult and pediatric tunable diaphragms and allows the smaller side to convert to an open bell. A stethoscope can therefore be both dual-head and convertible.
| Type | What the term means | How frequency emphasis is achieved | Adult / pediatric use |
|---|---|---|---|
| Dual head | Two-sided chestpiece | Bell, diaphragm or tunable-side selection | Model-specific |
| Convertible | Reconfigurable chestpiece | Selected physical or tunable configuration | May support adult/pediatric use or bell conversion |
| Digital | Electronic amplification and processing | Built-in filters shape the captured signal | Depends on chestpiece design and intended use |
Note: The terms in this table describe design or processing approaches. They are not fixed clinical frequency cut-offs.
What the Bell and Diaphragm Actually Change
The bell and diaphragm change frequency emphasis acoustically. The StatPearls Cardiac Exam chapter describes the lightly applied bell as useful for low-pitched findings and the diaphragm for higher-pitched sounds. The bell therefore changes both frequency emphasis and mechanical coupling to the chest wall.
Clinically relevant sound regions overlap rather than forming rigid boxes. A 2026 acoustics study of electronic stethoscopes grouped expected spectra for digitized heart sounds at about 20–500 Hz and breath sounds at about 100–1000 Hz. These are clinical reference bands, not universal bell-versus-diaphragm cut-offs.
For digital auscultation, a filter can only emphasize information the chestpiece and transducer have captured. It cannot recreate a low-frequency component that was never acquired, so front-end frequency response matters alongside the filter.
Adult and Pediatric Chestpieces Solve a Different Problem
Adult and pediatric chestpieces mainly address physical fit and contact area. A smaller pediatric side can make placement more practical; it does not create a separate set of pediatric sound frequencies.
Pediatric suitability is determined by chestpiece design and the manufacturer’s intended use, not by whether the stethoscope is digital. Dual-head also does not automatically mean adult plus pediatric.
Switch Listening Focus with Digital Filters
How Digital Stethoscopes Can Reduce the Need for a Traditional Bell
A digital stethoscope can change frequency emphasis electronically instead of relying only on a bell-and-diaphragm change. But the filter works on the signal produced by the device’s acoustic front end; if clinically relevant low-frequency information is not captured, filtering cannot add it back.
So “digital” does not automatically mean “no bell required.” Some digital stethoscopes retain dual-sided chestpieces, while others rely more on electronic filtering. The answer is device-specific.
AyuSynk 2+ is one such device-specific example: it uses adult and pediatric diaphragm sides, while frequency emphasis is handled through digital heart and lung filters rather than a traditional bell.
How AyuSynk 2+ Handles Frequency Emphasis Digitally
AyuSynk 2+ uses a dual-diaphragm chestpiece, with a larger diaphragm for adult auscultation and a smaller diaphragm for pediatric auscultation. Unlike some convertible dual-head stethoscopes, the smaller side is not converted into an open bell.
Frequency emphasis is handled digitally instead. AyuSynk 2+ has a published device frequency range of 20 Hz–20,000 Hz and uses dedicated heart and lung filters to emphasise the frequency information relevant to the auscultation task.
This means the clinician does not need to switch between a bell and diaphragm to change frequency emphasis. The physical chestpiece selection is based on adult or pediatric use, while the heart or lung filter determines the listening focus digitally.
The filters work on sound already acquired by the chestpiece, so they emphasise information within the captured frequency range rather than creating frequency information that was not acquired.
Choosing Between Dual Head, Convertible and Digital Stethoscopes
- A dual-head stethoscope suits clinicians who prefer a familiar acoustic workflow with manual selection between two chestpiece sides.
- A convertible stethoscope is useful when reconfiguration, such as adult/pediatric use or conversion to an open bell, matters to the practice.
- A digital stethoscope is relevant when amplification, electronic filtering, recording or replay are part of the clinical workflow.
Dual head describes construction, convertible describes reconfiguration, and digital describes electronic sound handling. AyuSynk 2+ adds heart and lung filters, amplification, recording and replay while keeping interpretation with the clinician.
Frequently Asked Questions
Is a dual-head stethoscope the same as a convertible stethoscope?
No. Dual-head describes a two-sided chestpiece. Convertible describes a chestpiece that can be reconfigured, so one stethoscope can be both dual-head and convertible.
Why does a digital stethoscope not always need a bell?
A digital stethoscope can use electronic filters to emphasise different frequency ranges already acquired by the chestpiece. In AyuSynk 2+, frequency emphasis is handled through heart and lung filters, while the two diaphragm sides are selected for adult or pediatric auscultation rather than bell-versus-diaphragm frequency selection.
Is a separate pediatric chestpiece required for pediatric digital auscultation?
Not always. Pediatric suitability depends on chestpiece size, device design and the manufacturer’s intended use, not on whether the stethoscope is digital.
What frequencies does a digital stethoscope cover?
The hardware range is device-specific. AyuSynk 2+ publishes 20 Hz–20,000 Hz; the cited 2026 study grouped expected heart sounds at about 20–500 Hz and breath sounds at about 100–1000 Hz. Clinical bands and device passbands are not the same thing.
